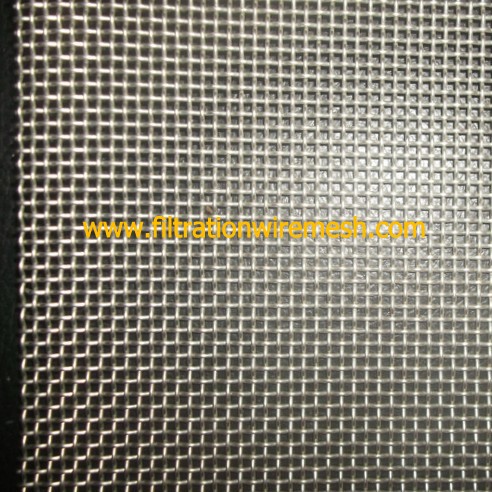

Product name : Stainless Steel Wire Mesh
Item : N001
 Enlarge Image                   Back
←[Previous Product]


Details:
Stainless steel filtration wire mesh:
 Weaved by high grade stainless steel wire material: AISI 304,AISI 304L,AISI 316,AISI 316L,we also have stainless steel wire import from Japan.
Width of our stainless steel woven wire mesh: 0.914m, 1m, 1.22m, 1.3m, 1.4m, 1.5m, 1.6m, 2m, 3m, 4m, 6m.
Our stainless steel wire mesh can be high mesh size 800mesh,1000mesh,1400mesh,1600mesh,2100mesh,2300mesh,2500mesh.Herringbone twilled weave for drying.Max width we can weave is 6 meter.
Weave type:Plain weave,Plain dutch weave,Twill weave,Twill Ddutch weave,Heriingbone twilled weave
Plain dutch weave mesh weaved by two different size warp wire and weft wire,it is used for fine filtration media that plain weave mesh can not reach.
Specification:
       Mesh                 Wire Diameter(mm)                 Width(m)         Material
80 x 80                   0.13             1m,1.5m,2m,6m 304,316,316L
100 x 100                   0.10             1m,1.5m,2m,6m 304,316,316L
24 x 110               0.35/0.25             1.28m,1.5m,1.6m 304,316,316L
30 x 150               0.23/0.18             1.28m,1.5m,1.6m 304,316,316L
50 x 250                0.14/0.11             1.28m,1.5m,1.6m 304,316,316L
127 x 1100               0.071/0.050             1.28m,1.5m,1.6m 304,316,316L


Stainless steel crimped wire mesh:
Material: stainless steel wire,low carbon wire,brass wire.
Pre-crimped wire before weaving,double crimped,the max width is 5 meter.
Application: filtration leaf,food machine,decorative mesh,mine seive,fencing,machine guard mesh.
Mesh Diameter(mm) Aperture(mm) Weight kg/m2
4 x 4 1.63 4.72 5.0
6 x 6 1.22   3.04 4.5
8 x 8 0.91 2.26 3.3
12 x 12 0.71 1.41 3.1


Stainless steel welded wire mesh:
We manufacture the welded wire mesh panel by high grade stainless steel wire in SUS304,SUS304L,SUS316,SUS316L.The welding spot are so firm that can make cages enclosed animals,birds in the zoo.The wire cages are anti rust and strong enough when impact by outside force.Popular mesh size are 1/4”,1/2",3/4",3/8",5/8",1" and 2".
         Mesh                        Wire diameter(mm)                     Width(m)
1/4" x 1/4"                             0.4 to 1.2mm                   0.4 to 1.2m
3/8" x 3/8"                             0.4 to 1.2mm                   0.4 to 1.2m
1/2" x 1/2"                             0.4 to 1.2mm                   0.4 to 1.2m
5/8" x 5/8"                              0.4 to 1.2mm                   0.4 to 1.2m
3/4" x 3/4"                             0.8 to 2.0mm                   0.8 to 2.0m
1" x 1/2"                             0.4 to 2.0mm                   0.4 to 2.0m
1-1/2" x 1-1/2"                             0.4 to 2.0mm                   0.4 to 2.0m
1" x 1"                             0.6 to 2.5mm                   0.5 to 2.1m
2" x 2"                             0.6 to 2.5mm                   0.5 to 2.1m
Notes:Standard length of stainless steel welded wire mesh are 30 meter.
