Product name : Reverse Dutch Weave Continuous Filter Screen Belt
Item : 2016121920914
 Enlarge Image                   Back
             [Next Product]→


Details:

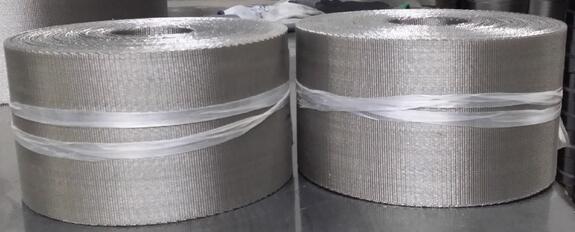

We manufacturer the reverse dutch weave filter wire mesh for fully automatic continuous belt type screen changer,the material of filter belt screen is SS304 and SS316,reverse dutch weave type provide finer filtration and finds popular uses in chemical,food and plastic recycling filter.
The width of plastic filter belt screen is from 97mm to 400mm,and the length is 10 meters or 20 meters per roll.


Below are some popular mesh specifications,other mesh size also can be weave by request,
Mesh size Wire diameter(mm) Mesh thickness(mm)
72 x 15 0.45 x 0.55 1.75
120 x 15 0.35 x 0.45 1.25
132 x 17 0.32 x 0.45 1.20
150 x 17 0.30 x 0.45 1.20
152 x 24 0.27 x 0.40 1.05
152 x 30 0.25 x 0.30 1.00
170 x 17 0.27 x 0.25 1.17
260 x 40 0.15 x 0.25 0.65
