Slotted wedge wire screen cylinder are welded by profile V-wire and support wires,it is also called Johnson screen.The features are high ratio filter area because of big opening,vee wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will reduce when water flow in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so make the pipe life longer.Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes.
Material: Low carbon steel wire,AISI 304,AISI 304L,AISI 316,AISI316L,high quality stainless steel wire.
Application: With the high-precision,our wedge wire as filter elements used in water treatment industry,oil filtration,paper making,refine sugar,we have inside perforated metal and wedge wire tube outside filter.
Specification:

Diameter of cylinder 25mm,28mm,32mm,38mm,40mm,42mm,45mm,48mm,50mm,53mm,
57mm,58mm,60mm,65mm,68mm,70mm,76mm,80mm,82mm,100mm,
108mm,120mm,133mm,159mm,196mm,219mm,240mm,325mm,400mm,
450mm,480mm,500mm,550mm,600mm,1200mm.
Slot size 0.06mm,0.08mm,0.10mm,0.15mm,0.20mm,0.30mm,0.50mm,............6mm
Length 20mm to 6000mm
Notes Coutom shape and specification can be made as your request.


Product Show
Wedge Wire Screen

Wedge Wire Screen

  Wedge wire screen cylinder are welded by profile V-wire and support wires,it also called Johnson screen.The features are high ratio filter area...
More>>
Wedge Wire Sieve Bend Screen

Wedge Wire Sieve Bend Screen

Wedge wire sieve bend screen is a high efficiency curve separate madia by wet material pressure.
Vee wedge wire screen have high strenthen and ...
More>>
Wedge Wire Trommel Drum Screen

Wedge Wire Trommel Drum Screen

Nanrui trommel screen rotary wedge wire drum type in stainless steel 304,it is used to separate solids from liquids or solids.
Slot size from 0...
More>>

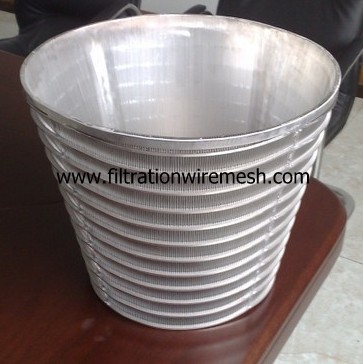

Centrifuge Screen Baskets
