Wedge wire screen filter nozzles as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.

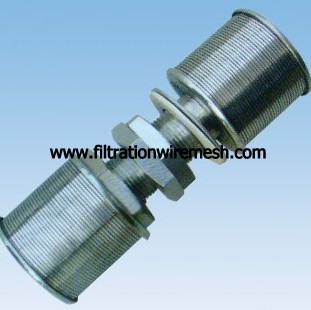

We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.
Characteristic:
- Great flow area
- Long service time
- Good pressure resistance
D |
L |
L1 |
Slot Size |
d |
Flow Area mm2 |
45 |
98 |
34 |
0.2-0.25 |
M20 |
380-493 |
45 |
100 |
44 |
0.2-0.25 |
M24 |
551-690 |
53 |
100 |
34 |
0.2-0.25 |
M24 |
453-597 |
53 |
100 |
44 |
0.2-0.25 |
M27 |
680-710 |
53 |
105 |
50 |
0.2-0.25 |
M32 |
800-920 |
57 |
115 |
34 |
0.2-0.25 |
M30 |
560-670 |
57 |
120 |
55 |
0.2-0.25 |
M32 |
780-905 |
60 |
120 |
55 |
0.2-0.25 |
G1" |
905-1100 |
82 |
130 |
50 |
0.2-0.25 |
M33 |
1170-1280 |
108 |
200 |
100 |
0.2-0.25 |
G2" |
3050-4600 |
D |
L |
L1 |
L2 |
Slot Size |
d |
Flow Area mm2 |
45 |
110-170 |
34 |
34 |
0.2-0.25 |
M24 |
390-493 |
45 |
110-170 |
44 |
44 |
0.2-0.25 |
M24 |
551-690 |
53 |
120-180 |
34 |
34 |
0.2-0.25 |
M27 |
453-597 |
53 |
120-180 |
44 |
44 |
0.2-0.25 |
M30 |
680-710 |
57 |
120-180 |
50 |
50 |
0.2-0.25 |
M32 |
800-1000 |
60 |
120-180 |
50 |
50 |
0.2-0.25 |
G1" |
950-1188 |
