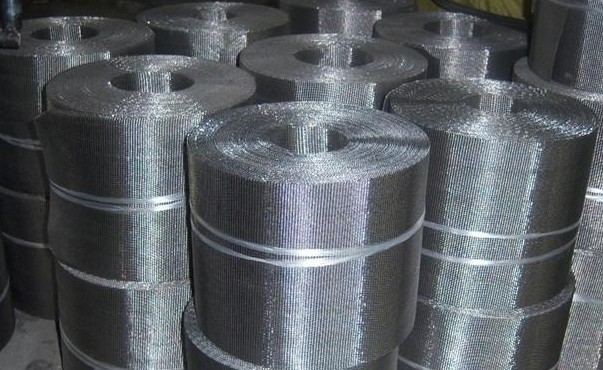

Product name : Reverse Plain Dutch Weave Wire Mesh
Item : 201491011437
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Reverse plain dutch weave wire mesh is woven by two different size wires,the wrap wires are smaller and spaced closer together than the weft wires.It is the microdur filter cloth used in the screen medias.
The reverse dutch weave wire cloth require using the very fine and high tensile wires,we produce screen changers that used in the plastic extrusion industry.
Edges: rubber edges and plasma welding edges
Aperture range: 14  to 200 microns
Material: AISI 304, AISI 304l, AISI 316, AISI 316L

Specifications:

PZ14 - 615 x 132 mesh
PZ17 - 615 x 128 mesh
PZ40 - 287 x 71   mesh
PZ50 - 287 x 61   mesh
PZ60 - 171 x 46   mesh
PZ80 - 128 x 36   mesh
PZ25 S - 615 x 102 mesh
