Product name : Double Balanced Weave Mesh Belt
Item : 201411616227
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

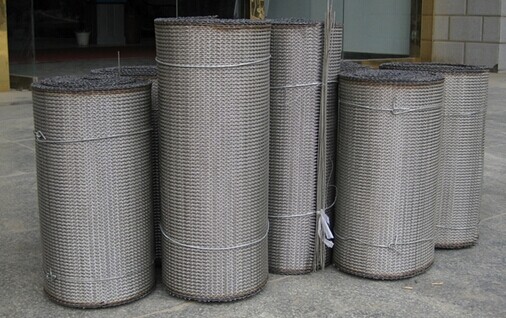

Stainless steel SUS 314 double balanced weave mesh belt used as the high temperature annealing furnace,we choose the top quality stainless steel wire material to guarantee the mesh belt conveyor woking stable in the continuous furnace and owen,SUS314 sprial wire mesh belt mainly used in the food processing,glass and ceramic industry.
Material choose: SUS314, SUS310S, SS304, SS304L, SS316, SS316L, SS 302,Carbon Steel
Sprial Wire Diameter: 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.3mm, 2.6mm, 3mm, 3.2mm, 3.4mm, 4.0mm, 5.0mm.
Sprial Pitch: 3mm, 4mm, 5mm, 6mm, 8m, 9mm, 10mm, 12mm, 15mm, 20mm, 25m, 30mm, 40mm.
Rod Wire Diameter: 0.9mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.3mm, 2.6mm, 3.0mm, 3.2mm, 3.4mm, 4.0mm, 5mm, 6mm.
Rod Pitch: 4mm, 5mm, 6mm, 7mm, 9mm, 10mm, 12mm, 15mm, 18mm, 20mm, 25mm, 30mm, 40mm, 50mm.

The rod include straight wire rod and crimped rod,the straigth rod type belt is suiltable for small and heavy material.We design and supply the match chain for the mesh belt,welcome contact us for details.
