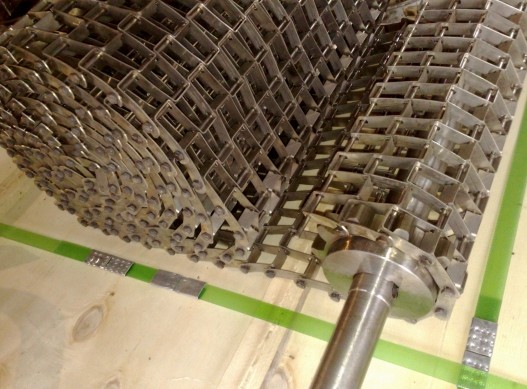

Product name : Flat Wire Conveyor Belt
Item : 201416141328
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
The advantage of stainless steel flat wire conveyor belt are working smooth,big opening,it is made of flat wire and round wire core.The material choose are:low carbon wire,stainless steel wire(SUS304,SUS316).Honeycomb wire belt is another name of flat wire belt.
Application industry: food processing,drying,baking.
Nowadays,the flat wire mesh belt become the necessary parts in the auto line equipment.
Specification:
Belt Type Flat Wire Size Laterial Pitch Rod Pitch Rod Diameter Width
FW2.5/8.0 2.5 x 20mm 31mm 27.3mm 8.0mm 50-3500mm
FW2.0/8.0 2.0 x 22mm 40mm 50.8mm 8.0mm 50-3500mm
FW2.5/2.5 2.5 x 16mm 37.4mm 28.3mm 5.0mm 50-3500mm
FW2.5/5.0 2.0 x 15mm 52.5mm 31.75mm 5.0mm 50-3500mm
FW1.5/3.0 1.5 x 12mm 52.5mm 31.75mm 3.0mm 50-3500mm
FW1.2/3.0 1.2 x 10mm 22.5mm 12.7mm 3.0mm 50-3500mm

Edge type: clinched and welded edges
Other specification can be custom made.
