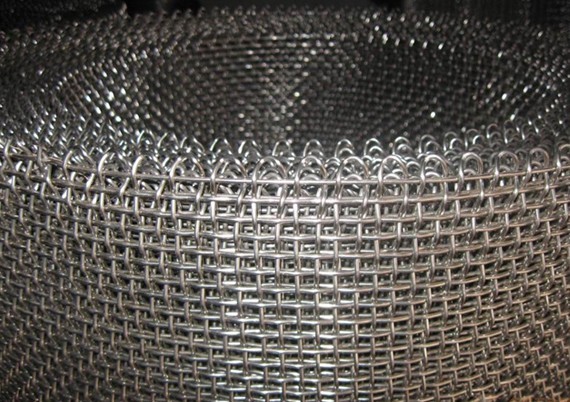

Product name : 8 Mesh Crimped Wire Mesh
Item : 20131113231557
 Enlarge Image                   Back



Details:

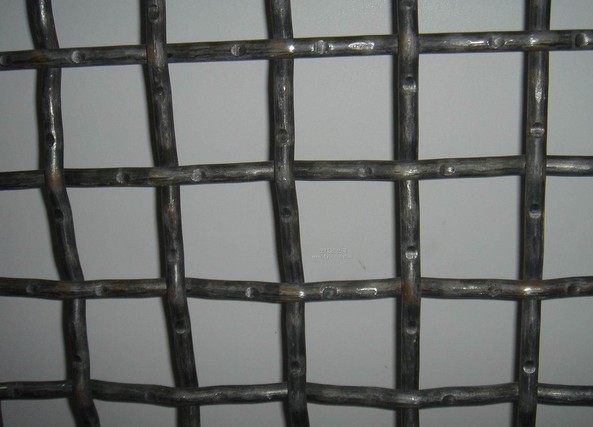

Square crimped wire mesh in 4 x 4 mesh and 8 x 8 mesh used in the material filter leaf,people choose the stainless steel wire SUS316L.We manufacture different mesh opening and the width from 0.5m to 8m.
Application: filter mesh material,mine screen,vibrating screen,security fencing,decorative mesh,raise pigs.
Material available: stainless steel wire,brass wire,low carbon wire,galvanized wire,chrome finish,architecture.
Edges: Selvage edges and raw edges.




Specification:

Mesh Size(inch) Wire Thickness(mm) Weight(kg/m²)
4 x 4 1.25 3.2
5 x 5 0.65 1
5 x 5 0.88 1.9
6 x 6 0.55 0.85
6 x 6 0.7 1.5
6 x 6 1.1 3.25
8 x 8 0.43 0.75
8 x 8 0.6 1.3
8 x 8 0.65 1.7
8 x 8 1.0 3.7
10 x 10 0.4 0.75
10 x 10 0.6 1.5
10 x 10 0.85 3.75
12 x 12 0.4 0.85
12 x 12 0.5 1.5
12 x 12 0.75 3.3
14 x 14 0.45 1.4
14 x 14 0.4 1.1
16 x 16 0.4 1.1
16 x 16 0.35 1.0
18 x 18 0.4 1.4
