Product name : DPL-25 Filter Disc For Oil Lubrication
Item : 2018413115233
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

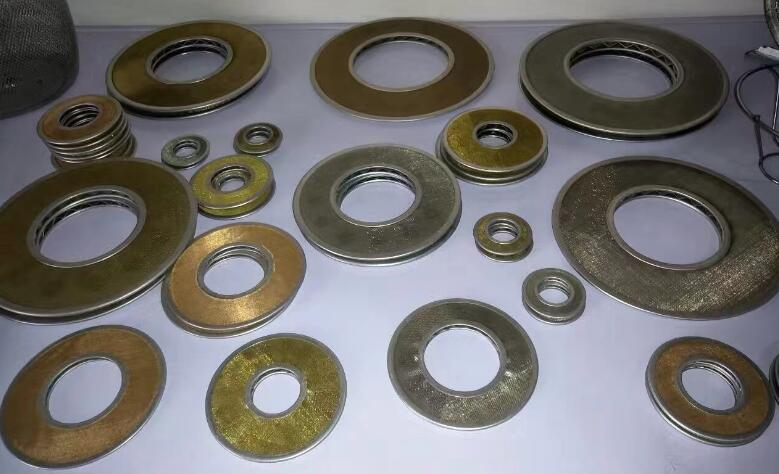

 We are factory of DPL/SPL oil filter disc that made of stainless steel wire mesh,bronze wire mesh with aluminum frame,the DPL oil filter disc is used for oil lubrication of vessel diesel engine to improve the cleanliness of the oil,the oil filter disc is easy cleaning and replacement.
Mesh sizes: 60x60, 80x80, 118x118, 202x202, 363x363, 500x500, 800x800, 1200x1200
Max working temperature: 95°C
Max working pressure: 0.8Mpa



Type DN Rate Flow(L/min) Inner Diameter Outer Diameter
DPL25 25 83.4 30mm 65mm
DPL40 40 200 45mm 90mm
DPL65 65 500 65mm 125mm
DPL80 80 834 70mm 155mm
DPL150 150 3000 90mm 175mm
DPL200 200 5334 90mm 175mm
