Product name : Stainless Steel Perforated Mesh Support Filter Basket
Item : 20161119132234
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

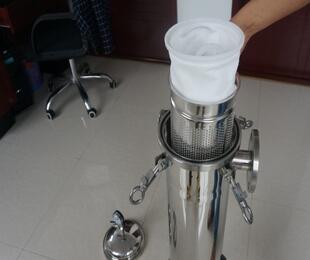

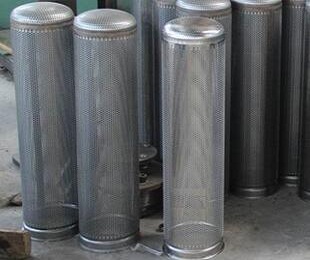

 Stainless steel mesh support filter basket is perforated metal type that used for bag filter system,the liquid from top or side of the container into the filter bag,because the prssure of liquid,the filter bag even to be propped up,then particulate impurities are trapped in the filter bag,the filtering separation process is completed.The material and thickness of perforated metal mesh filter basket strainer is very important and directly affect the filtering effectiveness.
Material: SS304, SS316, SS316L
Plate thickness: 1.5mm
Hole size: 3.5mm
Pitch: 6mm
Surface finish: electropolishing

Dimensions:
1: 180mm x 360mm
2: 180mm x 720mm
3: 110mm x 330mm
4: 110mm x 200mm
